2 Flute Solid Carbide Square End Mill

2 Flute Solid Carbide Square End Mill Description

2 Flute Solid Carbide Square End Mill is a high‑precision cutting tool engineered for side milling, square shoulder slotting, and step machining on steel and cast iron parts using modern CNC machines. This 2 flute solid carbide square end mill combines micro‑grain carbide substrate with a TiAlN coating and a high helix angle greater than 35°, delivering strong cutting edges, stable chip evacuation, and reliable tool life in demanding machining conditions.

2 Flute Solid Carbide Square End Mill Product Details

• Shank Dia (mm)：4mm 6mm 8mm 10mm 12mm 14mm 16mm 18mm 20mm
• Flute Dia.(mm)：1mm – 20mm
• Cutting Length (mm)：1mm – 20mm
• Overall Length (mm)：50mm – 100mm
• Flutes：2 Flutes
• HRC：HRC 45 / 50
• MOQ：1 pcs (standard) / 1-50 pc (custom)
• Quality Standards: DIN 6537 and DIN 6535-HA

Request a Quote

Contact Us

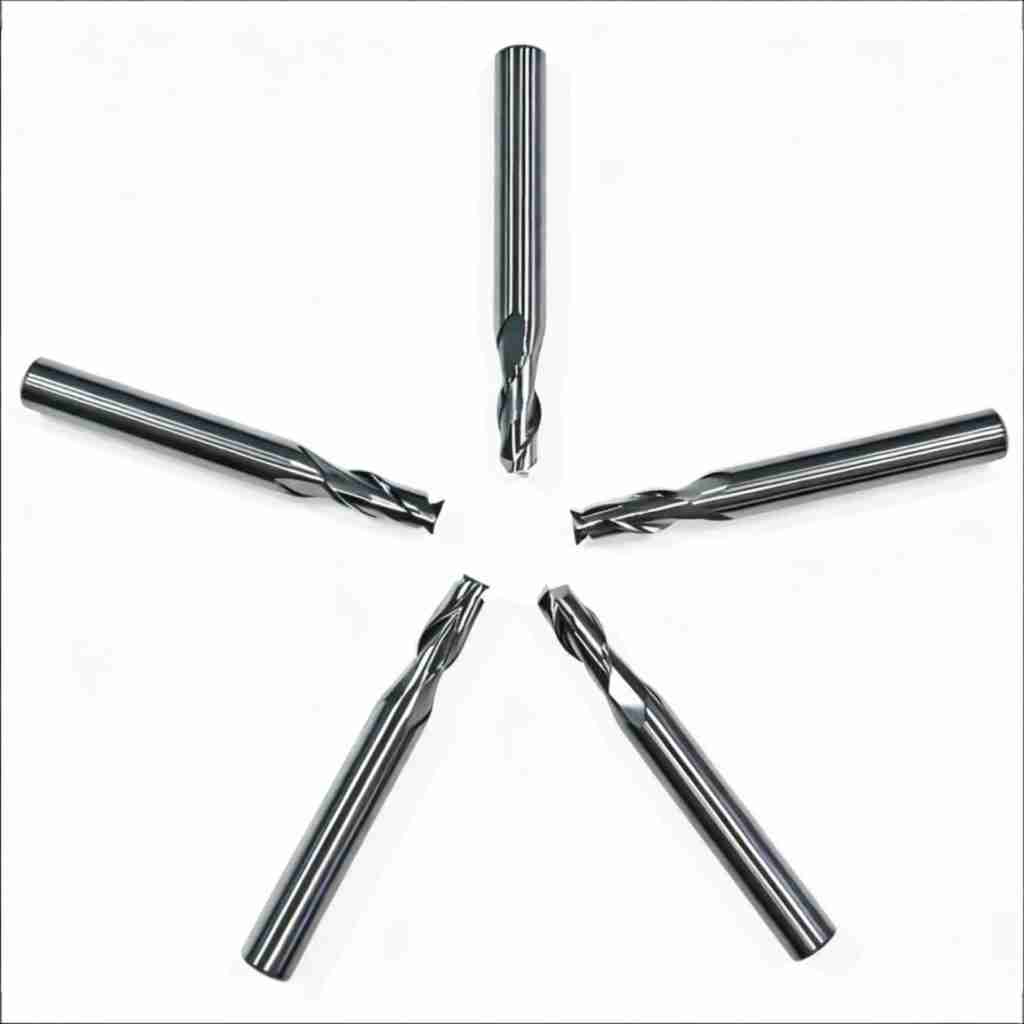

Products Pictures

Applicability for Materials

◎ = Perfect for    ○ = Suit    — = N/A

Available Size:

Key Features of 2 Flute Solid Carbide Square End Mill

The 2 flute solid carbide square end mill is designed as a versatile workhorse for steel and cast iron machining. Its square end geometry and large chip space make it ideal for aggressive slotting and side milling, while maintaining accurate 90‑degree shoulders. Compared with multi‑flute tools, this 2 flute carbide cutter offers lower cutting resistance and more stable chip evacuation, especially in deeper slots and pockets.

Design and Coating Advantages

• 2 flute solid carbide geometry with sharp square corners provides efficient chip evacuation and low cutting forces during slotting and side milling operations.
• TiAlN coating offers excellent heat resistance and wear protection, enabling higher cutting speeds and extended tool life in steels and cast irons, similar to our other high‑performance flat end mills.
• High helix angle above 35° promotes smooth chip flow out of narrow slots, reduces cutting forces, and minimizes built‑up edge on sticky low‑carbon steels.
• Precision ground diameter tolerance of 0/‑0.020 mm (D≤12 mm) and 0/‑0.030 mm (D≥12 mm) supports tight fits and repeatable gauge control in production runs.
• Long‑term stock availability across common diameters and lengths allows fast replacement and short lead times for scheduled and urgent orders.

Typical Applications and Materials

This tool is intended to be a shop standard for square‑shoulder work on steels. It bridges the gap between general‑purpose cutters and application‑specific tools such as hardened steel end mills, giving buyers a simple, stocked choice for most day‑to‑day jobs.

Application & Material Matrix

Positioning in Your Tool Portfolio

In a typical CNC workshop, this 2 flute solid carbide square end mill can serve as the core tool for steel slotting jobs, while 4 flute tools and corner radius end mills take care of finishing and edge protection. For buyers building a standard tool list, combining this product with our 4 flute end mills for steel and corner radius end mills covers most square‑shoulder and profiling operations on ferrous materials.

Selection Guide and Buying Considerations

When selecting a 2 flute solid carbide square end mill, start with the workpiece material and operation type. For carbon steel, alloy steel, and pre‑hardened steels around 45 HRC, choose standard length tools with TiAlN coating and a helix angle above 35° to balance rigidity and chip clearance. For deep side milling or square slotting, match cutting length to required depth but keep overall length as short as practical to reduce tool deflection and chatter. If you are unsure, you can reference our practical tips in the how to choose and buy carbide end mill guide.

Quick Selection Matrix

Buying Checklist for Procurement and Engineers

• Confirm diameter tolerance (0/‑0.020 mm for D≤12 mm, 0/‑0.030 mm for D≥12 mm) and shank size compatibility with existing toolholders.
• Verify TiAlN coating is specified if you plan to run elevated cutting speeds or cut pre‑hardened steels.
• Align flute length and overall length with fixture design to avoid unnecessary overhang and vibration.
• For new projects, consult internal process standards or refer to our carbide end mill selection guidelines before fixing feeds and speeds.
• Consider stocking key diameters together with complementary tools such as aluminum‑specific end mills and carbide drills to simplify purchasing.

Keep Production Stable with Stocked 2 Flute Square End Mills

For solid carbide manufacturers / carbide wholesale or end milll end user who need reliable 2 flute square end mills on the shelf instead of waiting weeks for delivery, our stocked range of 2 flute solid carbide square end mills offers a pragmatic solution. You get controlled tolerances, proven TiAlN performance on steel and cast iron, and tool sizes that are ready to ship when production spikes or new jobs arrive. By combining this product with our in‑stock carbide cutting tools program, you can reduce unplanned downtime and keep CNC machines cutting, not waiting for tools.

If you share your part drawings or current tool list with our engineering team via the contact us page, we can recommend suitable diameters, cutting parameters, and stocking levels tailored to your specific machines and materials.

Failure Cases and Lessons Learned

Case 1 – Corner Chipping in Deep Hardened Steel Slot

A shop used a 2 flute carbide cutter to rough a deep slot in hardened steel above 50 HRC at aggressive axial depth. Corner chipping appeared after a few passes. The root cause was excessive load for a 2 flute tool in high‑hardness material. After switching to smaller step‑down depths, adopting ramping toolpaths, and adding more coolant, the same 2 flute solid carbide square end mill achieved significantly longer tool life. The team later refined their strategy using ideas from our carbide tool life improvement guide.

Case 2 – Vibration and Poor Finish on Cast Iron Step

Another user reported heavy vibration and rough surfaces when machining steps on ductile cast iron with a worn tool. Inspection showed edge wear and noticeable runout in the toolholder. Replacing the cutter with a new 2 flute solid carbide square end mill, checking holder runout, and slightly reducing feed rate restored surface quality and dimensional stability. For future jobs, they also added a finishing pass using a dedicated mold‑making end mill on critical surfaces.

Case 3 – Oversize Slots on Precision Components

A customer machined precision slots in alloy steel and found slot widths consistently oversize. The issue came from using an end mill with unknown diameter tolerance and excessive overhang. By changing to a 2 flute solid carbide square end mill with 0/‑0.020 mm diameter tolerance and reducing overhang, they brought slot size back within tolerance and cut scrap rates. They documented the optimized process inside their internal standards together with specifications from our standards and specifications FAQ.

Case 4 – Built‑Up Edge When Dry Cutting Low Carbon Steel

In low carbon steel, one shop tried to run completely dry with very low cutting speed. Built‑up edge formed on the cutting lips, causing burrs and dimensional errors. Increasing cutting speed to a more suitable range and applying air‑blast to clear chips eliminated built‑up edge and stabilized tool performance. For future process planning, they reviewed material behavior and tooling options using the resources in our cutting tools insights section.
