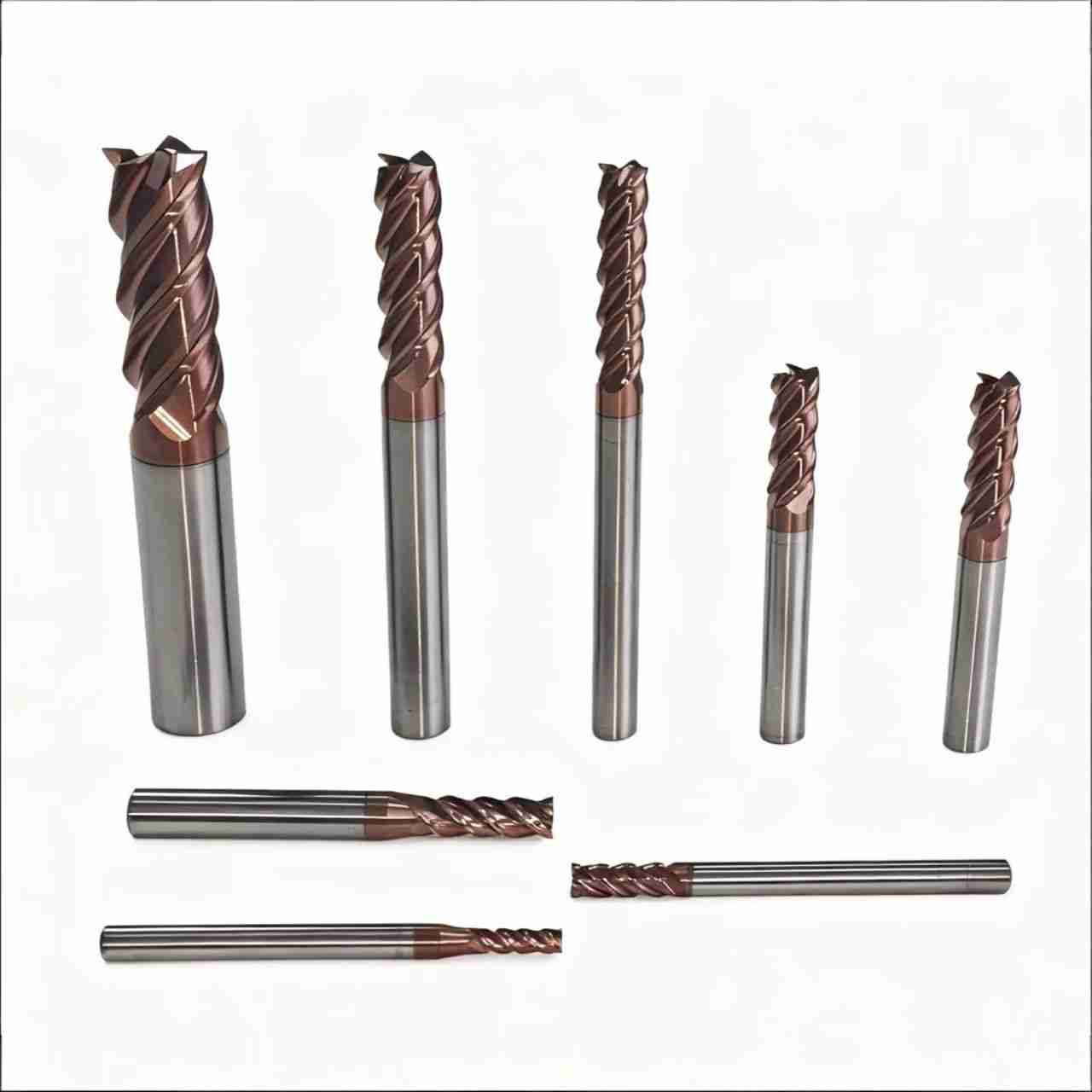

High-performance Flat End Mill Overview
For demanding machining applications requiring exceptional precision and efficiency, our High-performance Flat End Mill delivers outstanding results. These Premium Flat End Mills are manufactured from micro-grain Carbide Flat End Mills for superior wear resistance and extended tool life. The specialized geometry of these High-Feed Flat End Mills enables aggressive material removal rates while maintaining excellent stability. Available as TiAIXN Coated End Mills for enhanced thermal protection, these cutting tools excel in machining hardened steels, stainless steels, and other challenging materials, providing exceptional surface finish and dimensional accuracy in both roughing and finishing operations.
High-performance Flat End Mill Detail:
| Product item NO. | NCP-4E |
| Product Name | High-performance Flat End Mill |
| Usage | General High Speed Cutting for Metal |
| Type | End Mill,Coating,Customized(Altin, Tialn, Tin, Nano, etc) |
| Customized Support | OEM, ODM, Obm |
| Coating | Coating |
| Structure | Integral |
| Material | Cemented Carbide |
| Transport Package | Plastic Box/Customers’ Request/Carton |
| Trademark | Jin Ta Pai |
| Origin | China |
| HS Code | 8207709000 |
| Controlling Mode | CNC |
| MOQ | Flexible |
| Suitable for | Finishing Process |
| Flute | 4 Flute |
| Flute Diameter | 0.2-25.4mm |
| Spiral Angle | 45° |
| Over All Length | 50-100mm |
| Precision | 0.005~-0.01mm |
| HRC | 55HRC |
| Production Capacity | 50000piece/Pieces Per Month |
| Grade | YK25SF |
| Tooth Form | Spiral Tooth |
| Processing Type | Metal |
| Run out | Less Than 0.003mm |
High-performance Flat End Mill: Precision Engineering for Demanding Applications
Experience exceptional machining performance with our professional-grade High-performance Flat End Mill, engineered to excel in the most challenging cutting operations. This advanced cutting tool delivers outstanding results in processing hardened steels, stainless steels, and high-temperature alloys, making it the ideal choice for mold manufacturing, aerospace components, and precision parts machining. The innovative High-performance Flat End Mill features a specialized variable helix geometry that effectively reduces vibration and harmonics during high-speed operations, ensuring superior surface finish and dimensional accuracy.
Crafted from premium micro-grain carbide substrate and enhanced with advanced AlTiN coating, this durable High-performance Flat End Mill provides exceptional wear resistance and thermal stability, significantly extending tool life even under extreme cutting conditions. The optimized flute design facilitates efficient chip evacuation while preventing built-up edge, maintaining consistent performance throughout extended production runs. Whether you’re engaged in high-feed milling, slotting, or contouring applications, this versatile tool delivers unmatched reliability and cost-effectiveness, helping you achieve higher productivity and lower cost per part in your manufacturing operations.
NCP-4E
High-performance Flat End Mill
Most suitable for side milling and shallow groove processing

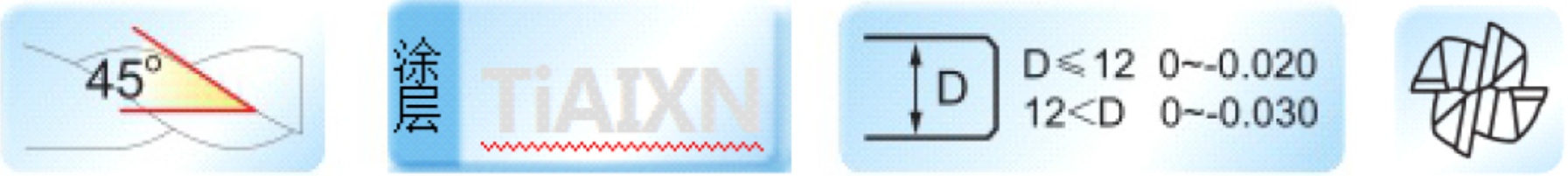

Spiral Angle: 45° Coating: TiAlXN

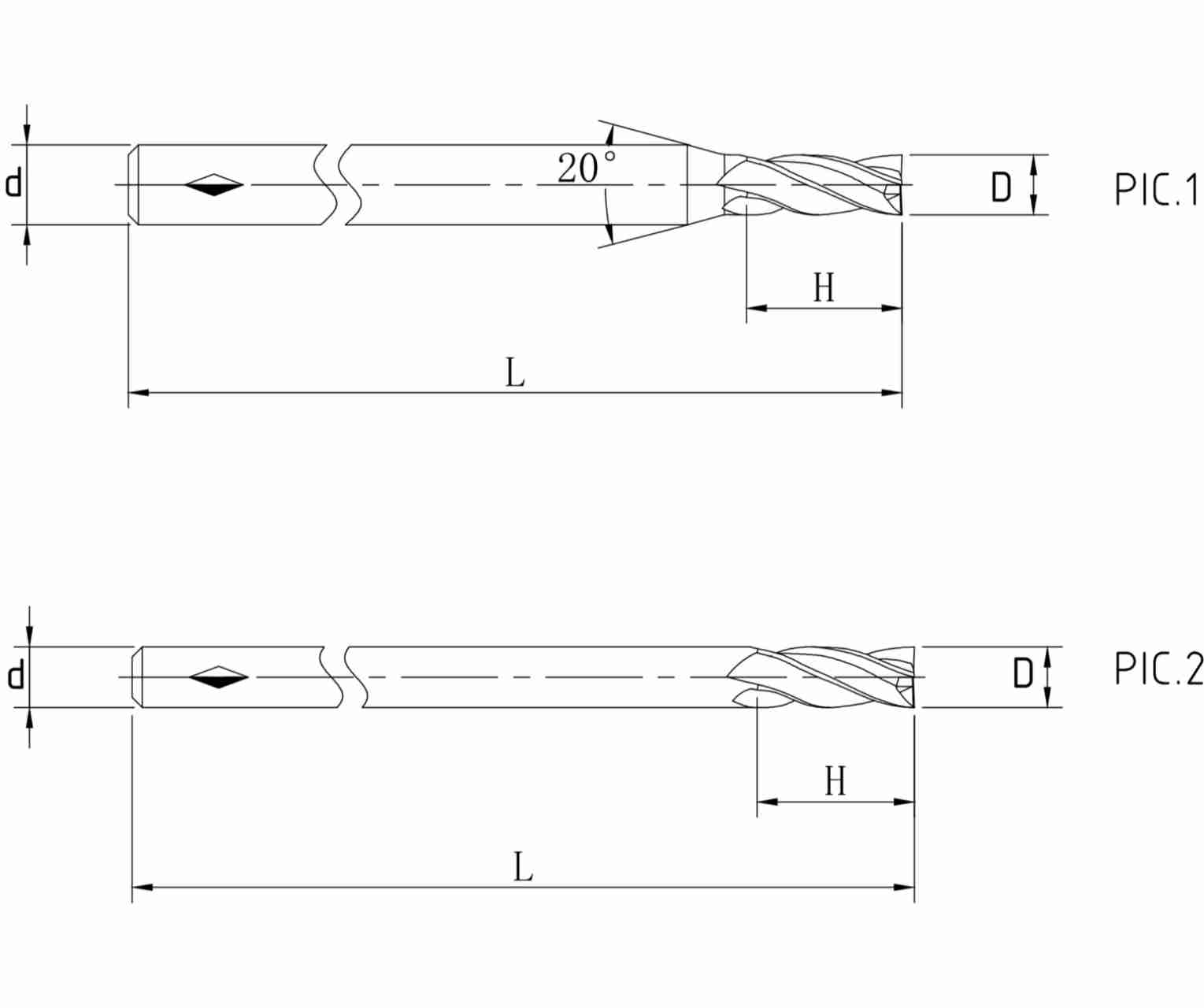

| Item NO. | Dimensions (mm) | Number of teeth | Shape | |||
| D | d | H | L | |||
| NCP-4E-D1.0S | 1.0 | 4 | 3 | 50 | 4 | PIC.1 |
| NCP-4E-D1.5S | 1.5 | 4 | 4 | 50 | 4 | PIC.1 |
| NCP-4E-D2.0S | 2.0 | 4 | 6 | 50 | 4 | PIC.1 |
| NCP-4E-D2.5S | 2.5 | 4 | 8 | 50 | 4 | PIC.1 |
| NCP-4E-D3.0S | 3.0 | 4 | 8 | 50 | 4 | PIC.1 |
| NCP-4E-D4.0S | 4.0 | 4 | 11 | 50 | 4 | PIC.2 |
| NCP-4E-D1.0 | 1.0 | 6 | 3 | 50 | 4 | PIC.1 |
| NCP-4E-D1.5 | 1.5 | 6 | 4 | 50 | 4 | PIC.1 |
| NCP-4E-D2.0 | 2.0 | 6 | 6 | 50 | 4 | PIC.1 |
| NCP-4E-D2.5 | 2.5 | 6 | 8 | 50 | 4 | PIC.1 |
| NCP-4E-D3.0 | 3.0 | 6 | 8 | 50 | 4 | PIC.1 |
| NCP-4E-D3.5 | 3.5 | 6 | 10 | 50 | 4 | PIC.1 |
| NCP-4E-D4.0 | 4.0 | 6 | 11 | 50 | 4 | PIC.1 |
| NCP-4E-04.5 | 4.5 | 6 | 11 | 50 | 4 | PIC.1 |
| NCP-4E-D5.0 | 5.0 | 6 | 13 | 50 | 4 | PIC.1 |
| NCP-4E-D5.5 | 5.5 | 6 | 16 | 50 | 4 | PIC.1 |
| NCP-4E-D6.0 | 6.0 | 6 | 16 | 50 | 4 | PIC.2 |
| NCP-4E-D7.0 | 7.0 | 8 | 20 | 60 | 4 | PIC.1 |
| NCP-4E-D8.0 | 8.0 | 8 | 20 | 60 | 4 | PIC.2 |
| NCP-4E-D9.0 | 9.0 | 10 | 22 | 75 | 4 | PIC.1 |
| NCP-4E-D10.0 | 10.0 | 10 | 25 | 75 | 4 | PIC.2 |
| NCP-4E-D11.0 | 11.0 | 12 | 26 | 75 | 4 | PIC.1 |
| NCP-4E-D12.0 | 12.0 | 12 | 30 | 75 | 4 | PIC.2 |
| NCP-4E-D14.0 | 14.0 | 14 | 32 | 75 | 4 | PIC.2 |
| NCP-4E-D16.0 | 16.0 | 16 | 45 | 100 | 4 | PIC.2 |
| NCP-4E-D18.0 | 18.0 | 18 | 45 | 100 | 4 | PIC.2 |
| NGP-4E-D20.0 | 20.0 | 20 | 45 | 100 | 4 | PIC.2 |
NCP Series
Multi-tooth high-performance universal machining end milling cutter
- Universal and efficient processing of materials below HRC 55 °C.
- Strict control of groove shape can better improve chip flow and bending, as well as reduce cutting force.
- Special tool structure design, high rigidity and high stability blade processing,The tool can carry a larger feed per tooth, greatly improving machining efficiency and metal removal.
- The new ultra-fine particle matrix material, combined with a new generation of coating technology, enables the tool to achieve excellent wear resistance and anti chipping performance, thereby obtaining a longer tool service life.

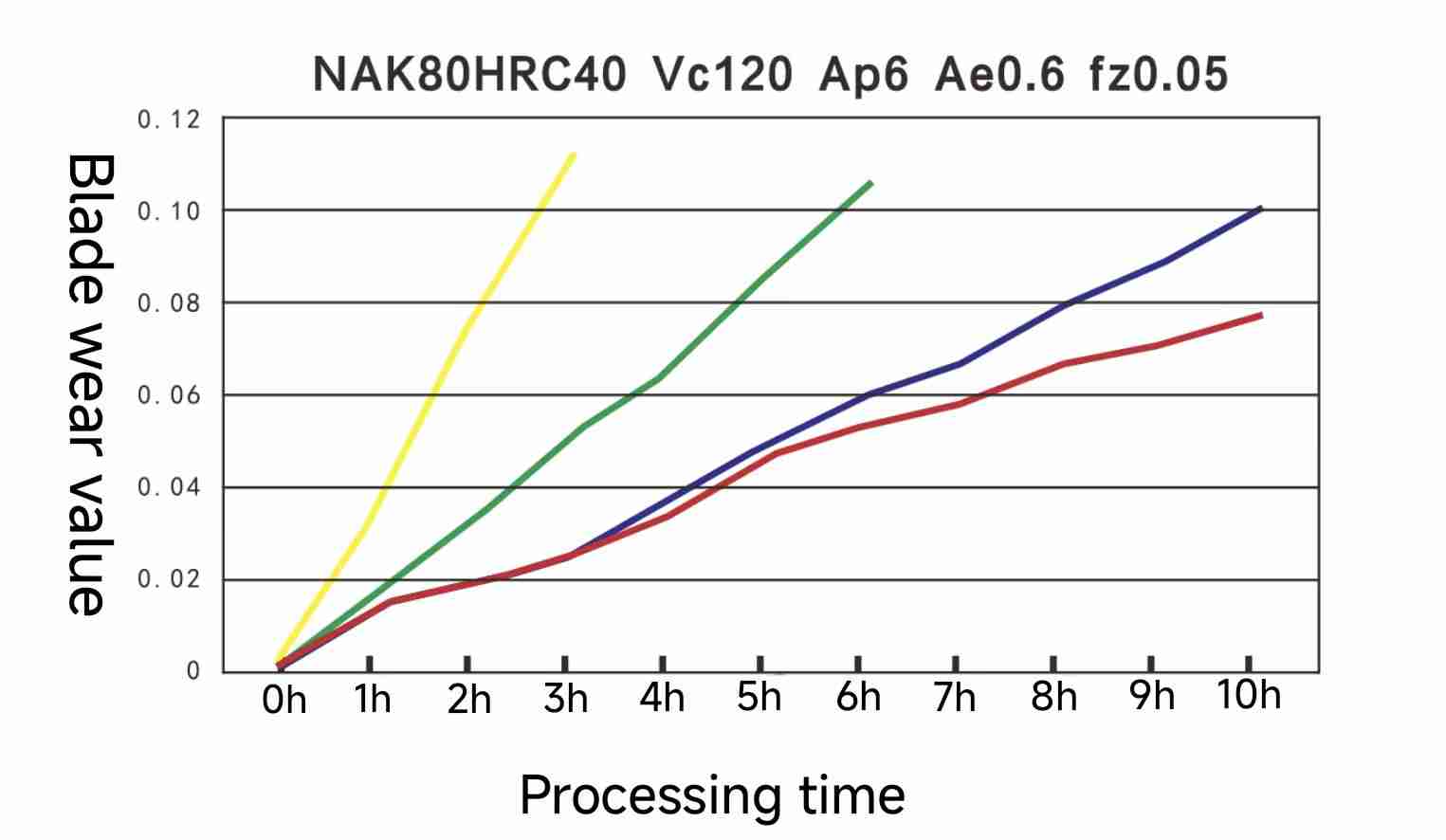

Application of NCP-4E-D6.0 Miling NAK8O (HRC40)
——————————————
—————
——————
——————
NCG-4E-D6.0
Similar products of Company A
Similar products of Company B
Similar products of Company C
Tool model: NCP-4E-D6.0
Diameter size: Medium 6.0mm
Machined material: NAK80 (HRC40)
Cutting line speed: 120 m/min
Feed rate:0.2 mm/r
Axial cutting depth: ap=6mm
Radial cutting width: ae=0.6mm
Milling method: side miling (forward milling)
Cooling method: oil cooling
Processing machine tool:Lichi DM800
