High-performance Two Blade Flat End Mill

High-performance Two Blade Flat End Mill PIC

High-performance Two Blade Flat End Mill Overview

Our High-performance Two Blade Flat End Mill delivers exceptional results in precision milling applications requiring superior chip evacuation and surface finishes. This advanced Double Flute Square End Mill features optimized geometry that ensures efficient performance in slotting, contouring, and pocket milling operations. The specialized High-efficiency Two Flute Flat End Mill maintains perfect stability during high-speed machining, while the precision-engineered Precision Two Flute Flat Bottom Cutter is manufactured from micro-grain carbide with advanced coatings, providing extended tool life and reliable performance when processing steels, aluminum alloys, and various engineering materials in demanding production environments.

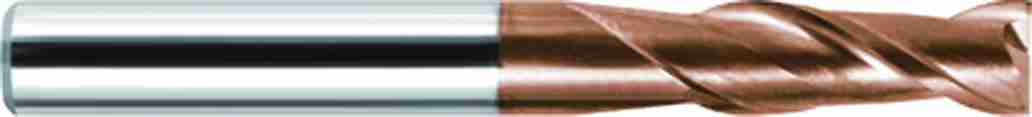

NCP-2E

High-performance Two Blade Flat End Mill

Suitable for groove milling

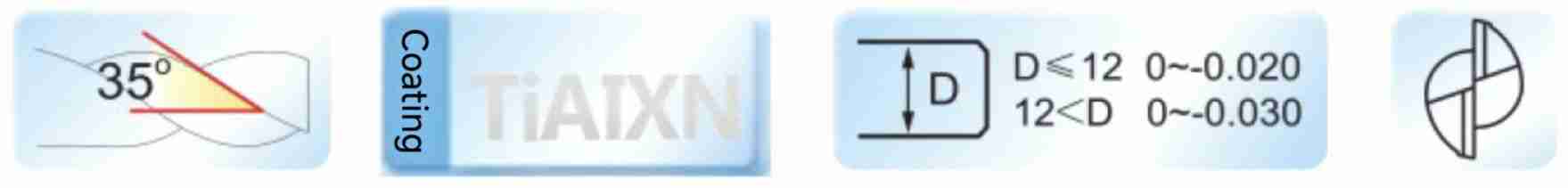

Spiral Angle: 35° Coating:TiAIXN

• Universal and efficient processing of materials below HRC 55 °C.
• Strict control of groove shape can better improve chip flow and bending, as well as reduce cutting force.
• Special tool structure design, high rigidity and high stability blade processing,The tool can carry a larger feed per tooth, greatly improving machining efficiency and metal removal.
• The new ultra-fine particle matrix material, combined with a new generation of coating technology, enables the tool to achieve excellent wear resistance and anti chipping performance, thereby obtaining a longer tool service life.

Application of NCP-4E-D6.0 Miling NAK8O (HRC40)

Tool model: NCP-4E-D6.0
Diameter size: Medium 6.0mm
Machined material: NAK80 (HRC40)
Cutting line speed: 120 m/min
Feed rate:0.2 mm/r
Axial cutting depth: ap=6mm
Radial cutting width: ae=0.6mm
Milling method: side miling (forward milling)
Cooling method: oil cooling
Processing machine tool:Lichi DM800
