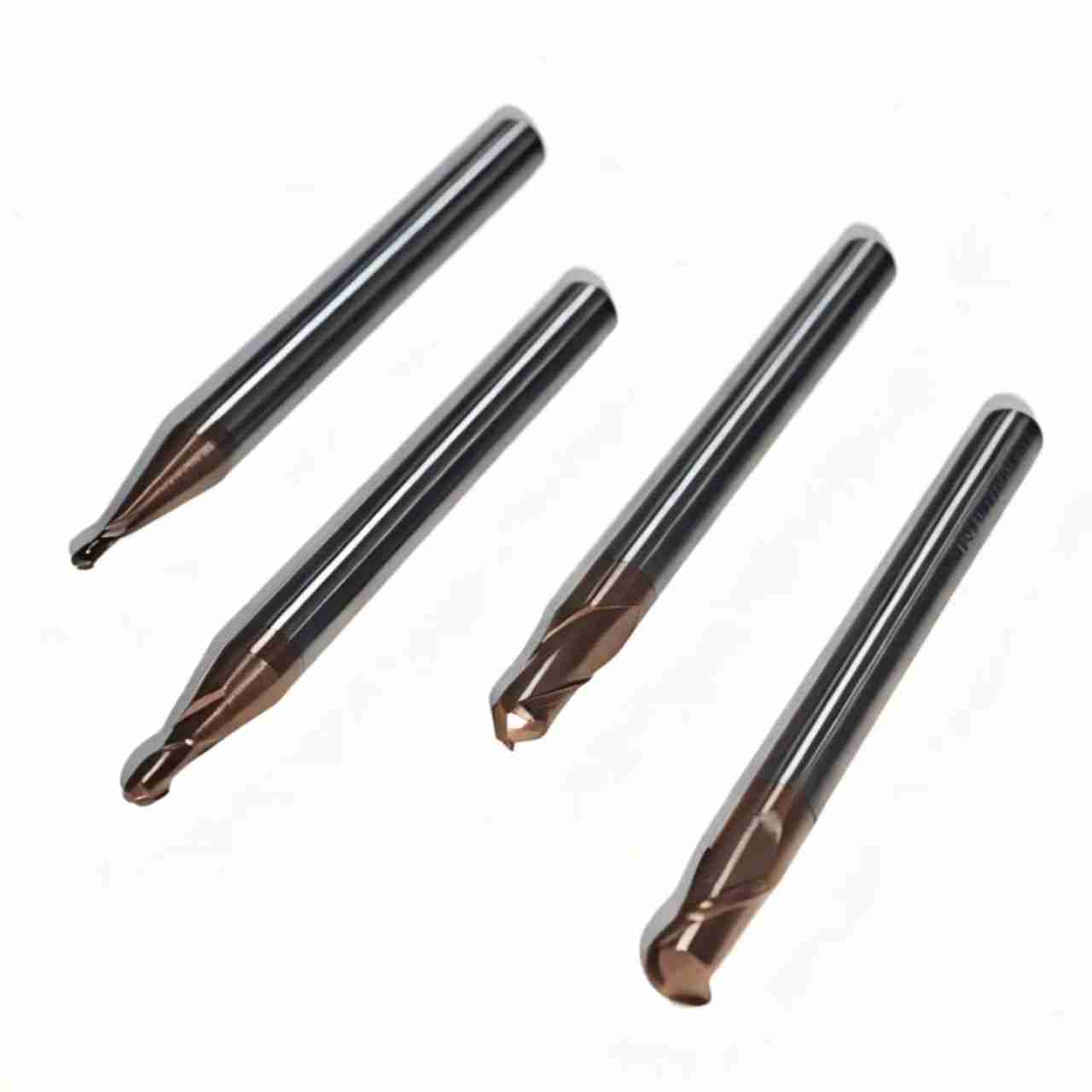

High-performance Two Blade Long Shank Ball End Mill PIC
High-performance Two Blade Long Shank Ball End Mill Overview
For demanding deep cavity machining and intricate 3D contouring applications, our High-performance Two Blade Long Shank Ball End Mill delivers exceptional stability and precision. This advanced High-performance Double Flute Extended Reach Ball End Mill features a reinforced shank design that effectively minimizes deflection during deep reach operations. As a premium Precision Long Shank Ball Nose Cutter, it ensures superior surface finishes in mold manufacturing and aerospace component machining. The specialized Extra Long Ball Nose End Mill is manufactured from micro-grain solid carbide with advanced coatings, providing excellent wear resistance and extended tool life when processing hardened steels, titanium alloys, and other challenging materials in demanding production environments, making it an ideal choice for complex machining tasks requiring both reach and precision.
High-performance Two Blade Long Shank Ball End Mill Detail:
| Product item NO. | NCP-2BL |
| Product Name | High-performance Two Blade Long Shank Ball End Mill |
| Usage | General High Speed Cutting for Metal |
| Type | End Mill,Coating,Customized(Altin, Tialn, Tin, Nano, etc) |
| Customized Support | OEM, ODM, Obm |
| Coating | Coating |
| Structure | Integral |
| Material | Cemented Carbide |
| Transport Package | Plastic Box/Customers’ Request/Carton |
| Trademark | Jin Ta Pai |
| Origin | China |
| HS Code | 8207709000 |
| Controlling Mode | CNC |
| MOQ | Flexible |
| Suitable for | Finishing Process |
| Flute | 2 Flute |
| Flute Diameter | 0.2-25.4mm |
| Spiral Angle | 30° |
| Over All Length | 75-150mm |
| Precision | 0.005~-0.01mm |
| HRC | 55HRC |
| Production Capacity | 50000piece/Pieces Per Month |
| Grade | YK25SF |
| Tooth Form | Spiral Tooth |
| Processing Type | Metal |
| Run out | Less Than 0.003mm |
High-performance Two Blade Long Shank Ball End Mill: Precision Machining for Deep Cavity Applications
Achieve exceptional precision in deep cavity machining and complex 3D contouring with our High-performance Two Blade Long Shank Ball End Mill. Engineered for demanding applications in mold making, aerospace components, and automotive manufacturing, this advanced cutting tool delivers outstanding performance where standard tools fail. The innovative High-performance Two Blade Long Shank Ball End Mill features a reinforced shank design that minimizes deflection during deep reach operations while maintaining perfect balance and stability. Crafted from premium micro-grain carbide and enhanced with advanced AlTiN coating, this durable High-performance Two Blade Long Shank Ball End Mill provides extended tool life and superior wear resistance when processing challenging materials like hardened steels, titanium alloys, and high-temperature composites. The optimized two-flute geometry ensures efficient chip evacuation and reduces cutting resistance, enabling smoother finishes and higher accuracy in your most intricate machining projects. Experience unparalleled reliability and productivity with this professional-grade solution that combines extended reach with precision engineering for superior results in deep-pocket milling and complex surface machining applications.
NCP-2BL
High-performance Two Blade Ball Long Shank End Mill
NCP-2B long shank series
Spiral Angle: 30° Coating: TiAIXN

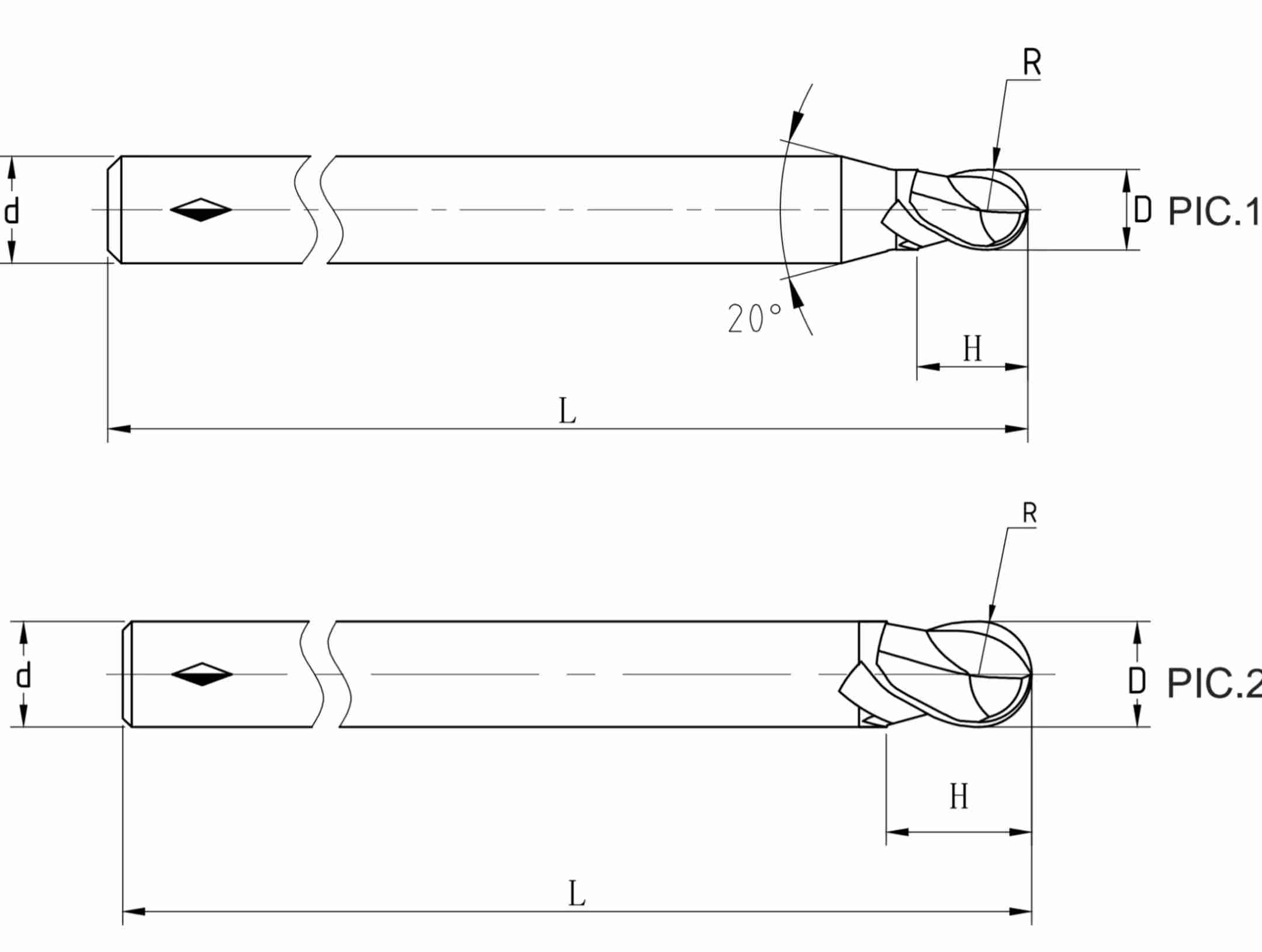

| Item NO. | Dimensions (mm) | Number of teeth | Shape | ||||
| D | R | d | H | L | |||
| NCP-2BL-R1.0 | 2.0 | 1.0 | 6 | 4 | 75 | 2 | PIC.1 |
| NCP-2BL-R1.25 | 2.5 | 1.25 | 6 | 5 | 75 | 2 | PIC.1 |
| NCP-2BL-R1.5 | 3.0 | 1.5 | 6 | 6 | 75 | 2 | PIC.1 |
| NCP-2BL-R1.75 | 3.5 | 1.75 | 6 | 8 | 75 | 2 | PIC.1 |
| NCP-2BL-R2.0 | 4.0 | 2.0 | 6 | 8 | 75 | 2 | PIC.1 |
| NCP-2BL-R2.5 | 5.0 | 2.5 | 6 | 10 | 75 | 2 | PIC.1 |
| NCP-2BL-R2.75 | 5.5 | 2.75 | 6 | 12 | 75 | 2 | PIC.1 |
| NCP-2BL-R3.0 | 6.0 | 3.0 | 6 | 12 | 75 | 2 | PIC.1 |
| NCP-2BL-R3.5 | 7.0 | 3.5 | 8 | 14 | 75 | 2 | PIC.1 |
| NCP-2BL-R4.0 | 8.0 | 4.0 | 8 | 16 | 100 | 2 | PIC.2 |
| NCP-2BL-R4.5 | 9.0 | 4.5 | 10 | 18 | 100 | 2 | PIC.1 |
| NCP-2BL-R5.0 | 10.0 | 5.0 | 10 | 20 | 100 | 2 | PIC.2 |
| NCP-2BL-R6.0 | 12.0 | 6.0 | 12 | 24 | 100 | 2 | PIC.2 |
| NCP-2BL-R7.0 | 14.0 | 7.0 | 14 | 28 | 100 | 2 | PIC.2 |
| NCP-2BL-R8.0 | 16.0 | 8.0 | 16 | 32 | 150 | 2 | PIC.2 |
| NCP-2BL-R10.0 | 20.0 | 10.0 | 20 | 40 | 150 | 2 | PIC.2 |
NCP Series
Multi-tooth high-performance universal machining end milling cutter
- Universal and efficient processing of materials below HRC 55 °C.
- Strict control of groove shape can better improve chip flow and bending, as well as reduce cutting force.
- Special tool structure design, high rigidity and high stability blade processing,The tool can carry a larger feed per tooth, greatly improving machining efficiency and metal removal.
- The new ultra-fine particle matrix material, combined with a new generation of coating technology, enables the tool to achieve excellent wear resistance and anti chipping performance, thereby obtaining a longer tool service life.
Application of NCP-4E-D6.0 Miling NAK8O (HRC40)
——————————————
—————
——————
——————
NCG-4E-D6.0
Similar products of Company A
Similar products of Company B
Similar products of Company C
Tool model: NCP-4E-D6.0
Diameter size: Medium 6.0mm
Machined material: NAK80 (HRC40)
Cutting line speed: 120 m/min
Feed rate:0.2 mm/r
Axial cutting depth: ap=6mm
Radial cutting width: ae=0.6mm
Milling method: side miling (forward milling)
Cooling method: oil cooling
Processing machine tool:Lichi DM800
