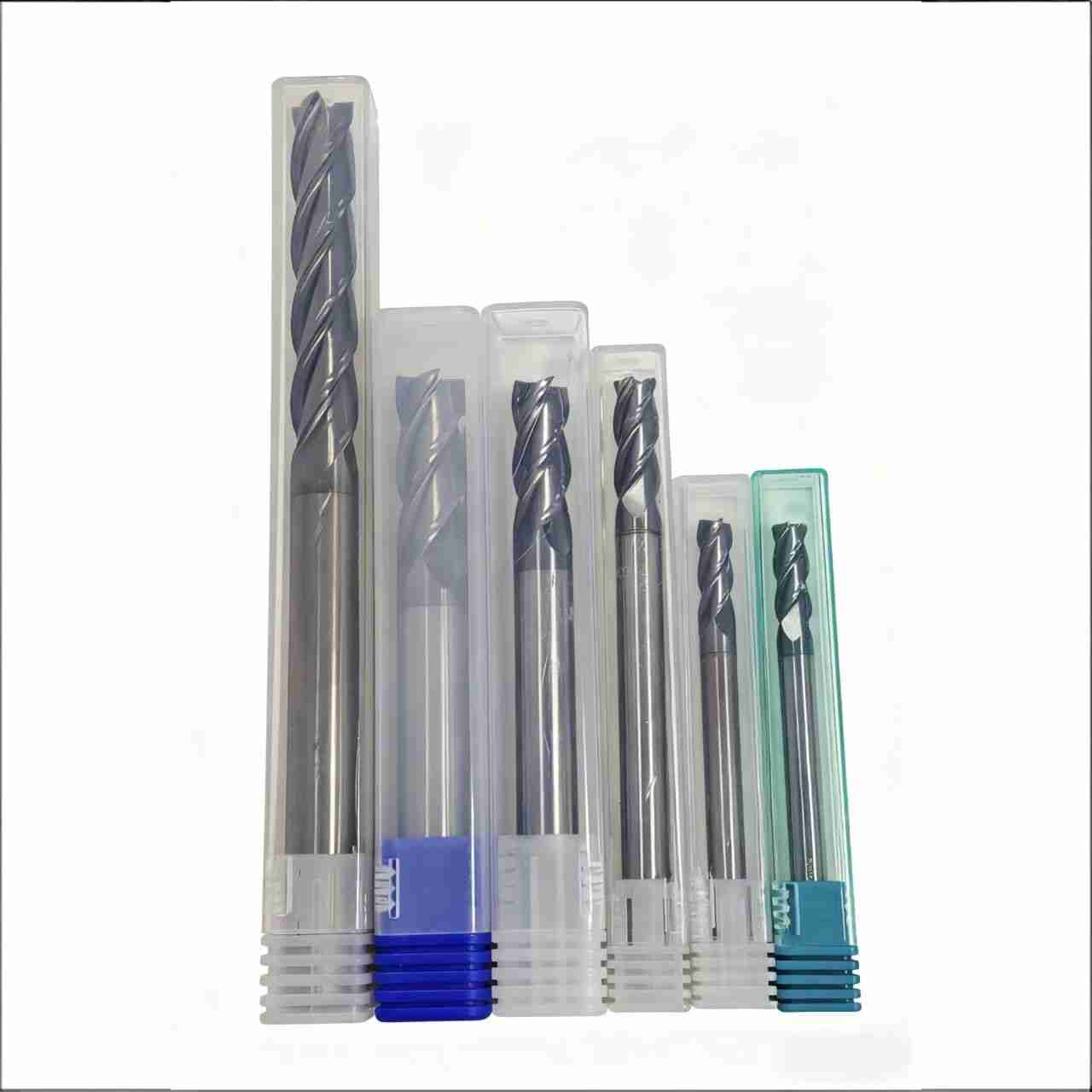

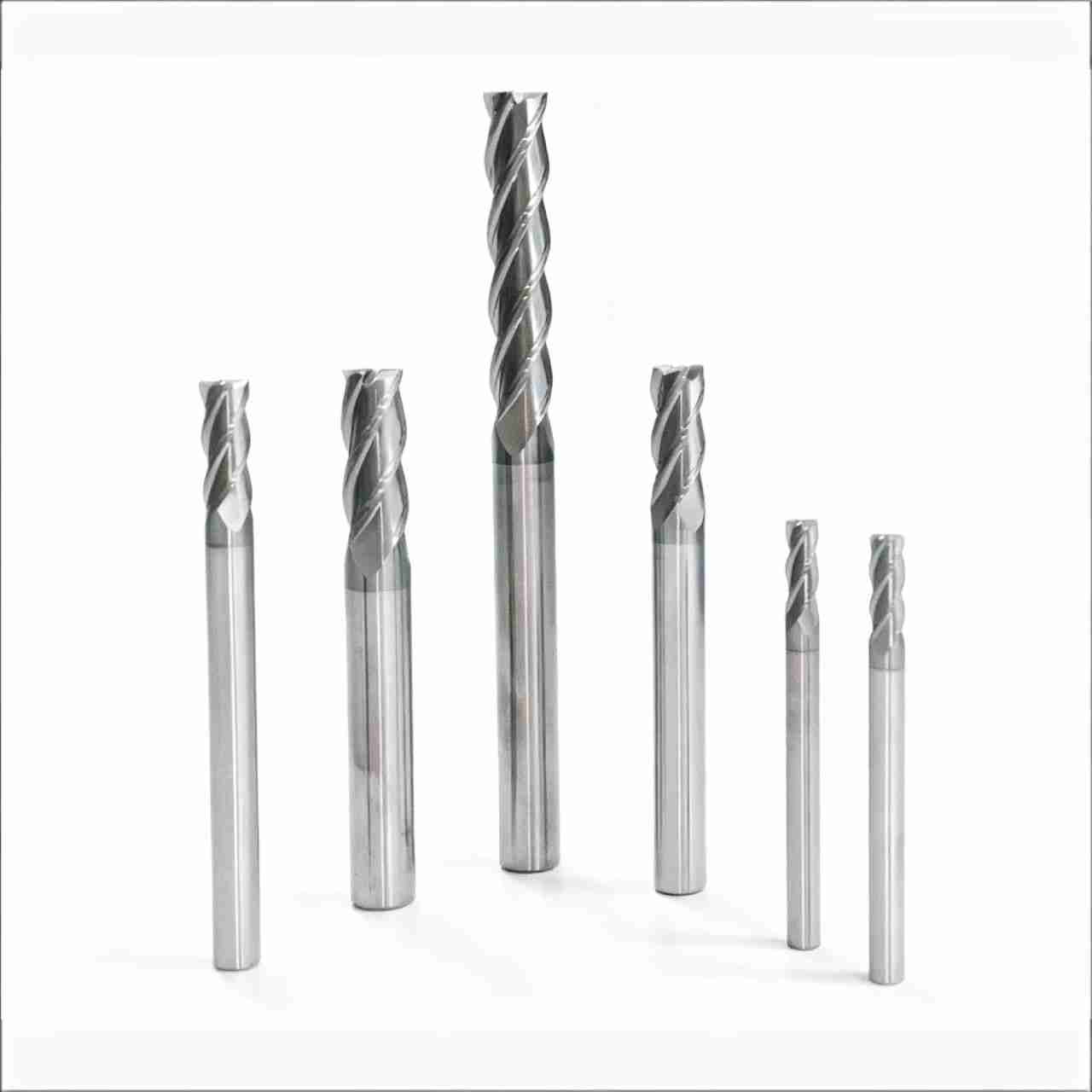

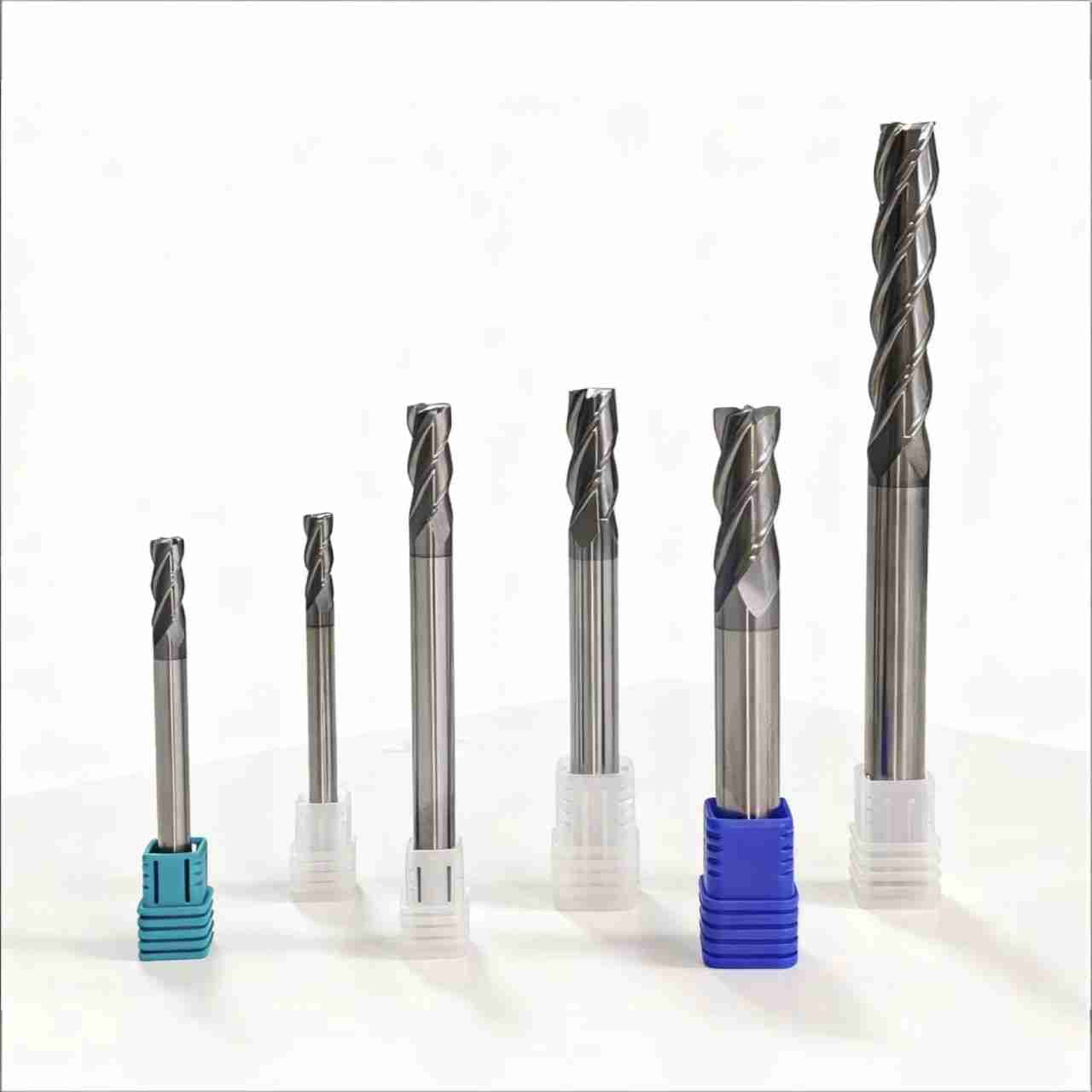

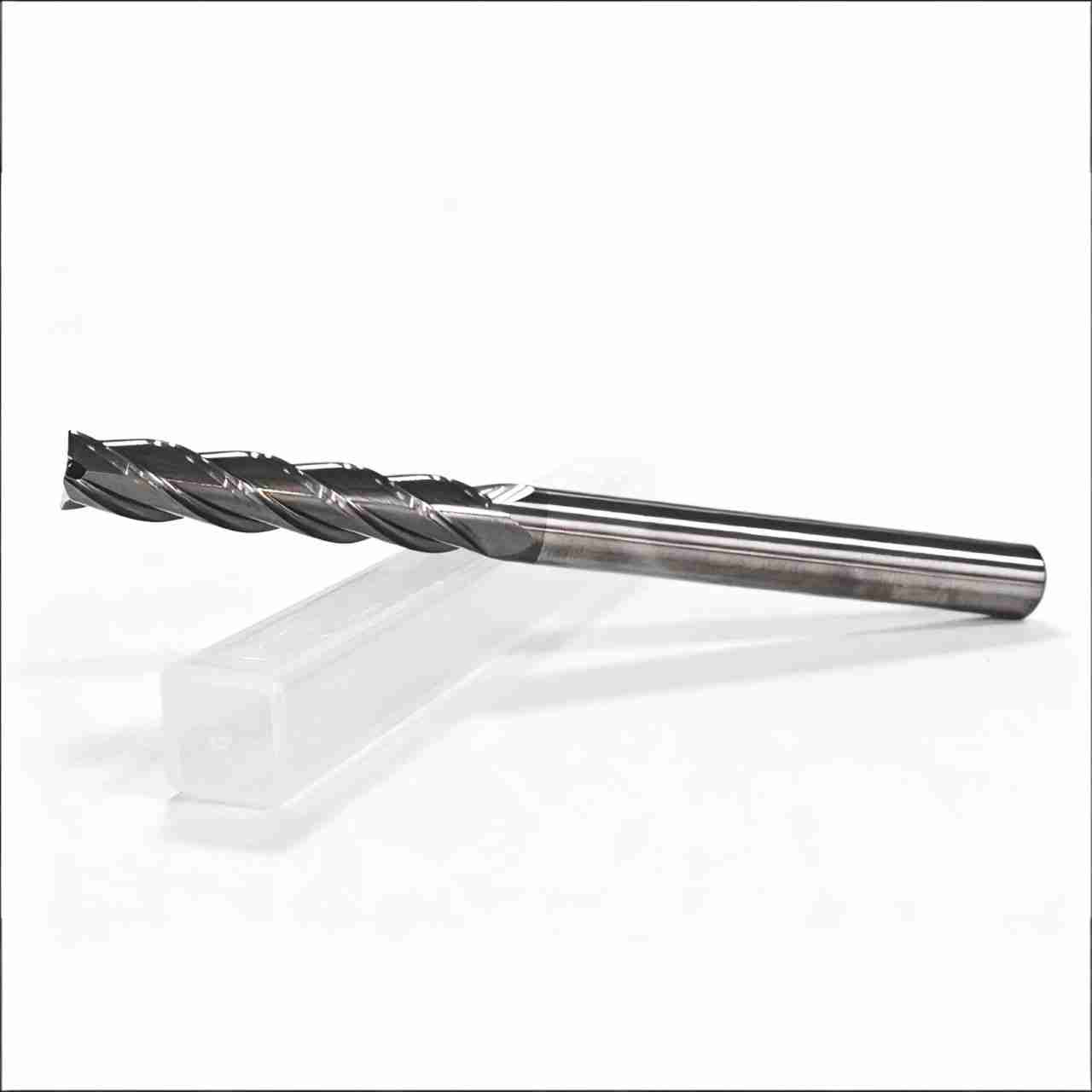

Solid Carbide Corner Radius Long Shank End Mills PIC
Solid Carbide Corner Radius Long Shank End Mills Overview
For deep cavity machining and extended reach applications, our Solid Carbide Corner Radius Long Shank End Mills deliver exceptional performance. These specialized tools, also known as Extended Reach Corner Radius End Mills or Long Series Radius End Mills, combine the durability of solid carbide with the strength of radiused corners to prevent chipping during demanding operations. As premium Corner Radius Long Reach Milling Cutters, they maintain rigidity in deep-pocket milling while the corner radius distributes cutting forces effectively. Available as TiAlN Coated Long Shank Radius End Mills, they offer superior heat resistance when machining hardened steels, stainless steels, and other challenging materials in mold making and aerospace applications.
Solid Carbide Corner Radius Long Shank End Mills Detail:
| Product item NO. | NCG-4RL |
| Product Name | Solid Carbide Corner Radius Long Shank End Mills |
| Usage | General High Speed Cutting for Metal |
| Type | End Mill,Coating,Customized(Altin, Tialn, Tin, Nano, etc) |
| Customized Support | OEM, ODM, Obm |
| Coating | Coating |
| Structure | Integral |
| Material | Cemented Carbide |
| Transport Package | Plastic Box/Customers’ Request/Carton |
| Trademark | Jin Ta Pai |
| Origin | China |
| HS Code | 8207709000 |
| Controlling Mode | CNC |
| MOQ | Flexible |
| Suitable for | Finishing Process |
| Flute | 4 Flute |
| Flute Diameter | 0.2-25.4mm |
| Spiral Angle | 35° |
| Over All Length | 50-150mm |
| Precision | 0.005~-0.01mm |
| HRC | 45HRC |
| Production Capacity | 50000piece/Pieces Per Month |
| Grade | YK25UF |
| Tooth Form | Spiral Tooth |
| Processing Type | Metal |
| Run out | Less Than 0.003mm |
Solid Carbide Corner Radius Long Shank End Mills: Precision Tools for Deep Reach Applications
Engineered for demanding machining operations requiring extended reach and superior strength, our Solid Carbide Corner Radius Long Shank End Mills deliver exceptional performance in deep cavity milling, mold making, and aerospace component manufacturing. These specialized tools combine the advantages of solid carbide construction with a reinforced corner radius design, creating the ultimate solution for challenging applications where standard end mills would fail. The premium Solid Carbide Corner Radius Long Shank End Mills feature a unique geometry that distributes cutting forces evenly while the radiused corners prevent chipping and extend tool life significantly.
Available with advanced AlTiN coatings for enhanced thermal protection, these Solid Carbide Corner Radius Long Shank End Mills maintain dimensional stability during prolonged operations in hardened steels, stainless steels, and high-temperature alloys. The extended shank design provides exceptional rigidity while allowing deeper access to complex part geometries, ensuring consistent performance where conventional tools cannot reach. This combination of features makes them ideal for both roughing and finishing operations in demanding industries, reducing vibration and improving surface finish quality while lowering cost per part through extended tool longevity and reduced machine downtime
NCG-4RL
Solid Carbide Corner Radius Long Shank End Mills
NCG-4R long shank series
Spiral Angle: 35° Coating: TiAlN
| Item NO. | Dimensions (mm) | Number of teeth | Shape | ||||
| D | R | d | H | L | |||
| NCG-4RL-D6.0R0.5 | 6.0 | 0.5 | 6 | 16 | 75 | 4 | PIC.2 |
| NCG-4RL-D6.0R1.0 | 6.0 | 1.0 | 6 | 16 | 75 | 4 | PIC.2 |
| NCG-4RL-D8.0RO.5 | 8.0 | 0.5 | 8 | 20 | 100 | 4 | PIC.2 |
| NCG-4RL-D8.0R1.0 | 8.0 | 1.0 | 8 | 20 | 100 | 4 | PIC.2 |
| NCG-4RL-D10.0R0.5 | 10.0 | 0.5 | 10 | 25 | 100 | 4 | PIC.2 |
| NCG-4RL-D10.OR1.0 | 10.0 | 1.0 | 10 | 25 | 100 | 4 | PIC.2 |
| NCG-4RL-D10.0R2.0 | 10.0 | 2.0 | 10 | 25 | 100 | 4 | PIC.2 |
| NCG-4RL-D12.0R0.5 | 12.0 | 0.5 | 12 | 30 | 100 | 4 | PIC.2 |
| NCG-4RL-D12.0R1.0 | 12.0 | 1.0 | 12 | 30 | 100 | 4 | PIC.2 |
| NCG-4RL-D12.0R2.0 | 12.0 | 2.0 | 12 | 30 | 100 | 4 | PIC.2 |
| NCG-4RL-D16.0R1.0 | 16.0 | 1.0 | 16 | 45 | 150 | 4 | PIC.2 |
| NCG-4RL-D16.0R2.0 | 16.0 | 2.0 | 16 | 45 | 150 | 4 | PIC.2 |
