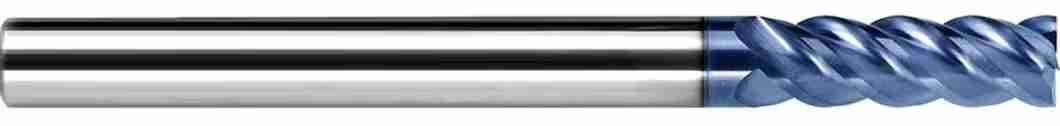

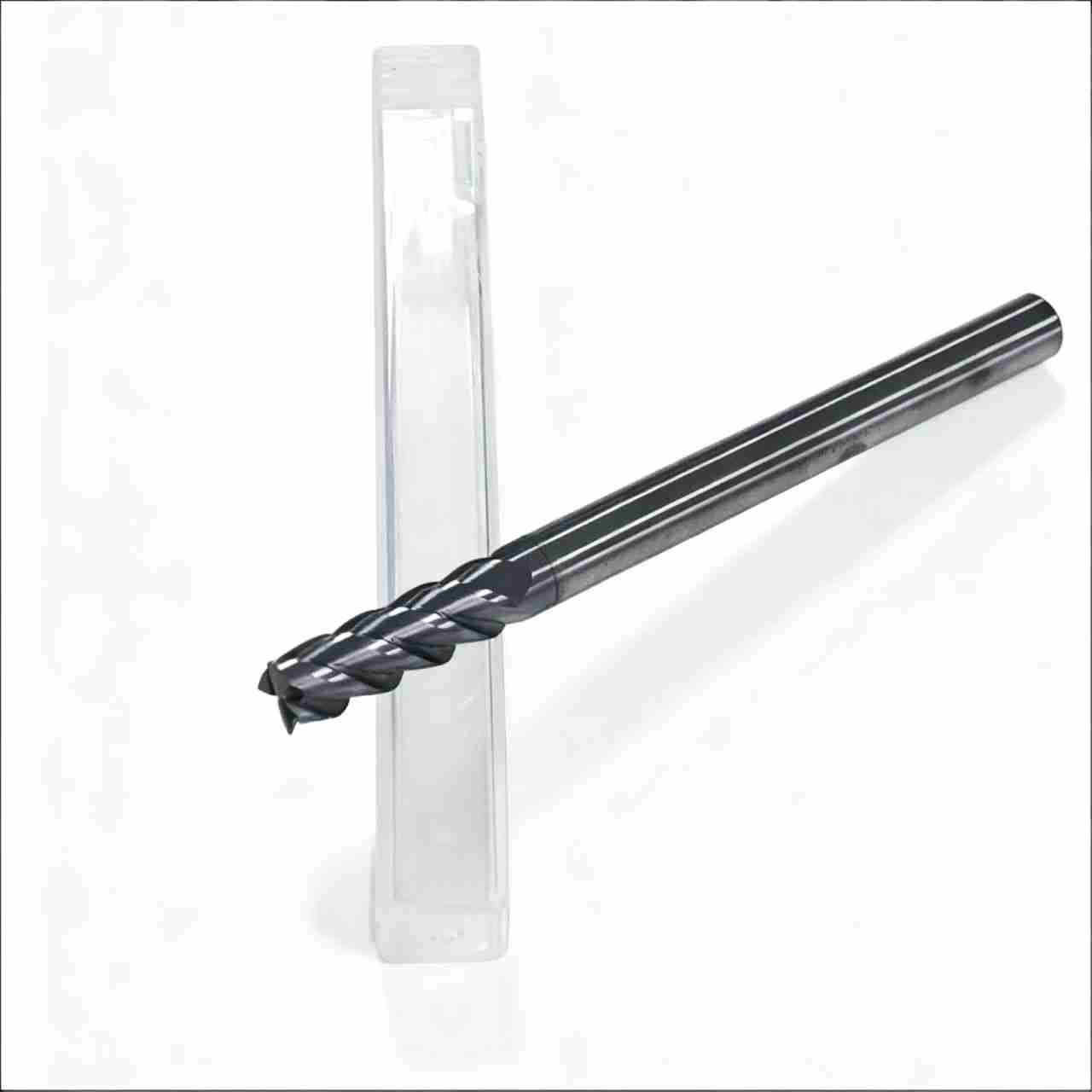

Long Flute Flat End Mills For Stainless Steel PIC
Long Flute Flat End Mills For Stainless Steel Overview
For deep cavity milling, profiling, and other challenging deep-reach applications in stainless steel, our Long Flute Flat End Mills For Stainless Steel provide the ideal solution. These Stiffness Long Series End Mills are engineered from micro-grain carbide to resist deflection, ensuring accuracy and a superior finish. Also known as Stainless Steel Deep Reach End Mills or Extra Long End Mills for Stainless Steel, they are available as TiAlN Coated Long Flute End Mills for enhanced lubricity and extreme heat resistance, significantly extending tool life in demanding production environments.
Long Flute Flat End Mills For Stainless Steel Detail
| Product item NO. | NCG-4EL |
| Product Name | Four blade straight shank long blade flat end milling cutter |
| Usage | General High Speed Cutting for Metal |
| Type | End Mill,Coating,Customized(Altin, Tialn, Tin, Nano, etc) |
| Customized Support | OEM, ODM, Obm |
| Coating | Coating |
| Structure | Integral |
| Material | Cemented Carbide |
| Transport Package | Plastic Box/Customers’ Request/Carton |
| Trademark | Jin Ta Pai |
| Origin | China |
| HS Code | 8207709000 |
| Controlling Mode | CNC |
| MOQ | Flexible |
| Suitable for | Finishing Process |
| Flute | 4 Flute |
| Flute Diameter | 0.2-25.4mm |
| Spiral Angle | 45° |
| Over All Length | 50-150mm |
| Precision | 0.005~-0.01mm |
| HRC | 45HRC |
| Production Capacity | 50000piece/Pieces Per Month |
| Grade | YK25UF |
| Tooth Form | Spiral Tooth |
| Processing Type | Metal |
| Run out | Less Than 0.003mm |
Long Flute Flat End Mills For Stainless Steel: Conquer Deep Reaches with Unmatched Rigidity
Tackle deep cavity milling, profiling, and other challenging deep-reach applications in abrasive stainless steels with our specialized Long Flute Flat End Mills For Stainless Steel. Engineered for maximum performance where standard tools fail, these end mills feature a robust, micro-grain solid carbide construction that provides exceptional rigidity to combat deflection and vibration. The unique variable helix geometry is specifically designed for stainless steel, ensuring smooth chip evacuation and a superior surface finish, even at full engagement depths.
To withstand the intense heat generated in deep-pocket machining, our Long Flute Flat End Mills For Stainless Steel are protected by a premium AlTiN coating. This advanced coating significantly enhances lubricity and heat resistance, leading to dramatically extended tool life and reduced cost per part. For unparalleled stability and precision in your most demanding jobs, trust our professional-grade Long Flute Flat End Mills For Stainless Steel to deliver consistent, reliable results.
NCG-4EL
Four blade straight shank long blade flat end milling cutter
NCG-4E Long Blade Series

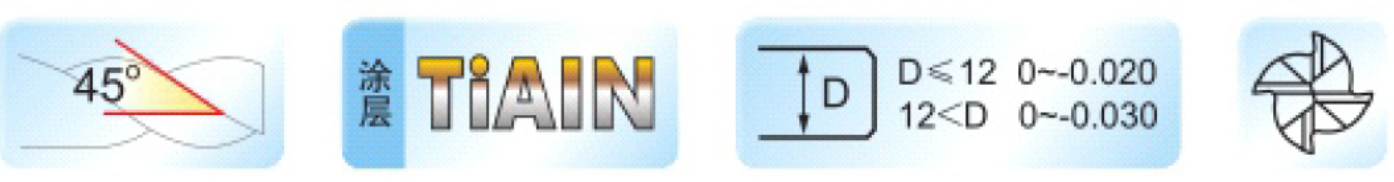

Spiral Angle: 45° Coating: TiAlN
| Item NO. | Dimensions (mm) | Number of teeth | Shape | |||
| D | d | H | L | |||
| NCG-4EL-D3.0 | 3.0 | 6 | 12 | 75 | 4 | PIC.1 |
| NCG-4EL-D4.0 | 4.0 | 6 | 15 | 75 | 4 | PIC.1 |
| NCG-4EL-D5.0 | 5.0 | 6 | 20 | 75 | 4 | PIC.1 |
| NCG-4EL-D6.0 | 6.0 | 6 | 20 | 75 | 4 | PIC.2 |
| NCG-4EL-D8.0 | 8.0 | 8 | 25 | 100 | 4 | PIC.2 |
| NCG-4EL-D10.0 | 10.0 | 10 | 30 | 100 | 4 | PIC.2 |
| NCG-4EL-D12.0 | 12.0 | 12 | 35 | 100 | 4 | PIC.2 |
| NCG-4EL-D14.0 | 14.0 | 14 | 40 | 100 | 4 | PIC.2 |
| NCG-4EL-D16.0 | 16.0 | 16 | 50 | 150 | 4 | PIC.2 |
| NCG-4EL-D20.0 | 20.0 | 20 | 55 | 150 | 4 | PIC.2 |
